Function:
Swing arm rubbish truck (also called swing arm garbage truck, arm swing trash truck, garbage collection truck mounted swing arm, rubbish collection truck, skip loader rubbish truck, ISUZU trash collector truck, swing arm garbage truck, skip loader trash truck, skip loader garbage lorry, container truck, etc. ) is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage transportation station etc.
The swing-arm garbage truck is a special sanitation vehicle that uses a hydraulic system to drive the swing arm mechanism to achieve mechanized loading and unloading of the garbage bucket. The chassis is equipped with a hydraulic lifting assembly and equipped with a boat-shaped or square garbage bucket.
SPV swing arm garbage truck loading capacity ranges from 1ton, 2tons, 3tons, 5tons, 8tons, 14tons, 18tons, 20 tons etc.
Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine(Japanese brand), super powerful; reliable performance, no overhaul within 100,000 km.
---- Advanced technical, high quality material, steady performance and simple operation;
---- Rational design of hook boom and locking structure make the action of hook lift much more reliable;
---- Main hydraulic components are from well-known company all over the world;
---- Safety devices: loading balance valve, double hydraulic lock valve, safety controlling valve and locking structure of container by hydraulic;
---- Rear support device is available.
Specitfication:

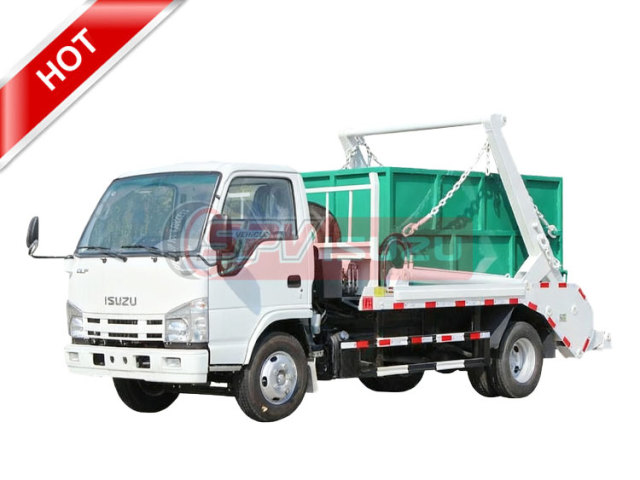

Swing Arm Trash Truck ISUZU
(4 m³ Garbage Truck)
|
| General |
Vehicle Brand |
SPV |
| Chassis Brand |
ISUZU |
| Overall Dimension |
5200 * 2200 * 2200 mm |
| GVW / Kerb Weight |
7,300 kg / 4,070 kg |
| Cab |
Cab Capacity |
3 persons allowed |
| Air Conditioner |
W/ air conditioner |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
ISUZU engine |
| Power |
120 HP (88 KW) |
Displacement
|
2999 ml
|
Emission Standard
|
Euro IV
|
| Chassis |
Drive Type
|
4X2, left hand drive
|
Transmission
|
5-speed forward, 1 reverse
|
No. of Axles
|
2
|
Tyre Specification
|
7.00-16
|
Tyre Number
|
6 tyres and 1 spare tyre
|
Max Speed
|
100 km/h
|
Paint
|
Metallic paint
|
Superstructure
|
Loading Capacity
|
4 CBM
|
Dustbin Material
|
Anti-corrosive Steel
|
Hydraulic System
|
Chinese top brand multi-way valve, cylinders
|
Control Method
|
Manual Control, remote control as optional
|
Self-discharging Incline Angle
|
50°
|
Lifting Time
|
≤60S
|
Unloading Time
|
≤60S
|
The hook loader consists of underframe, linkage frame, fixed arm, telescopic arm, hook arm, locking system, hydraulic system ……..
|
All other standard accessories: Tool kit, English manual……
|

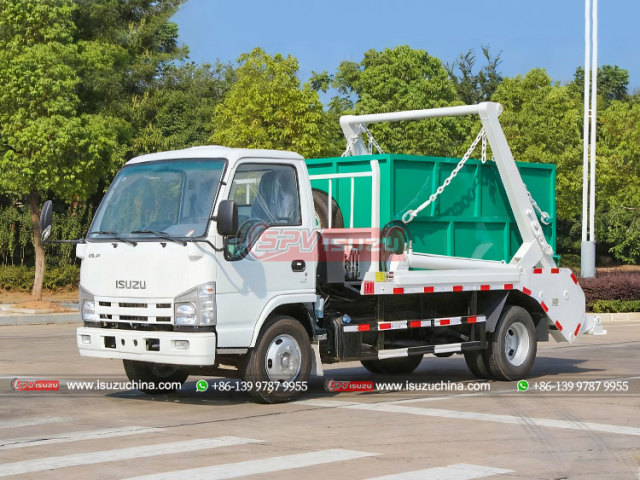

ISUZU Hydraulic Lift Arm Swing Garbage Truck - Front Left Side

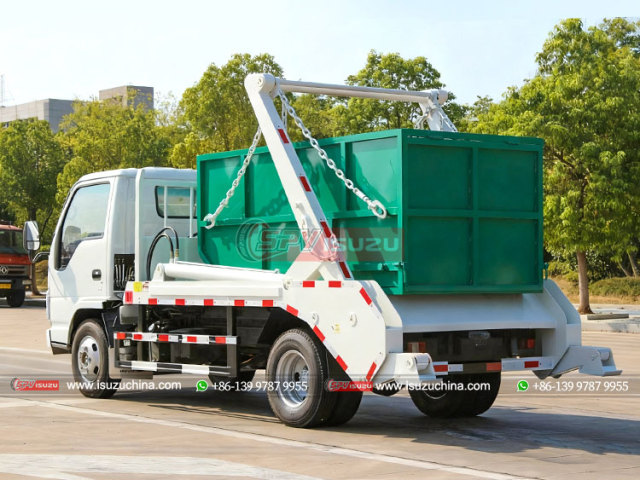

ISUZU 100P Skip Loader Waste Hauling Truck-Rear Left Side

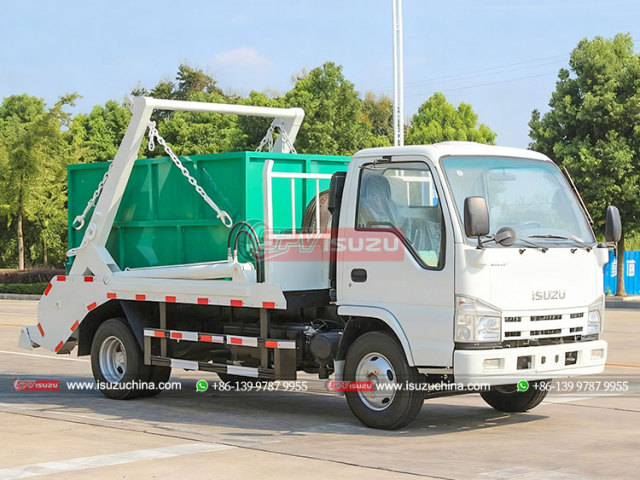

ISUZU Light-duty Skip Loader Garbage Wagon - Front Right Side

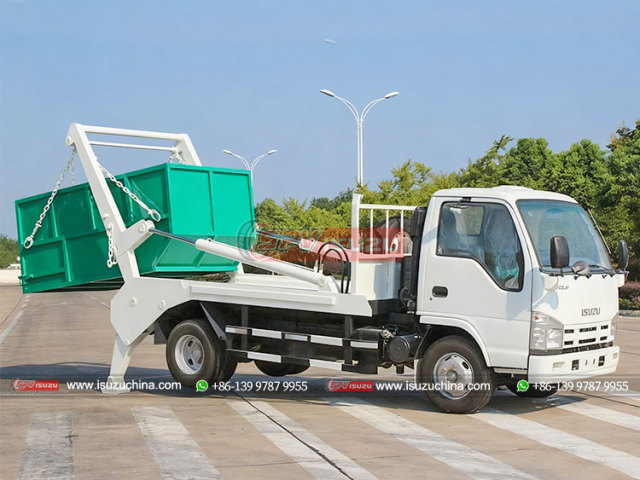

ISUZU 100P Skip Loader Rubbish Truck - Front Right Side

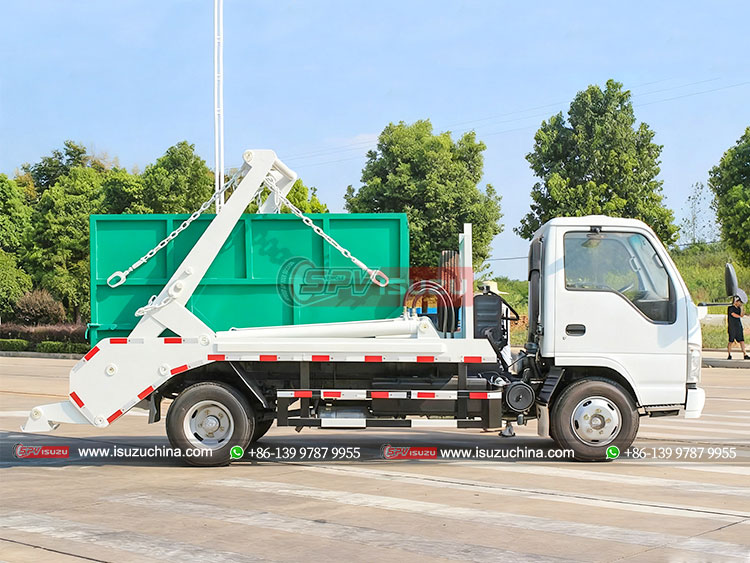

ISUZU 4 Tons Garbage Truck With Swing Arms - Right Side

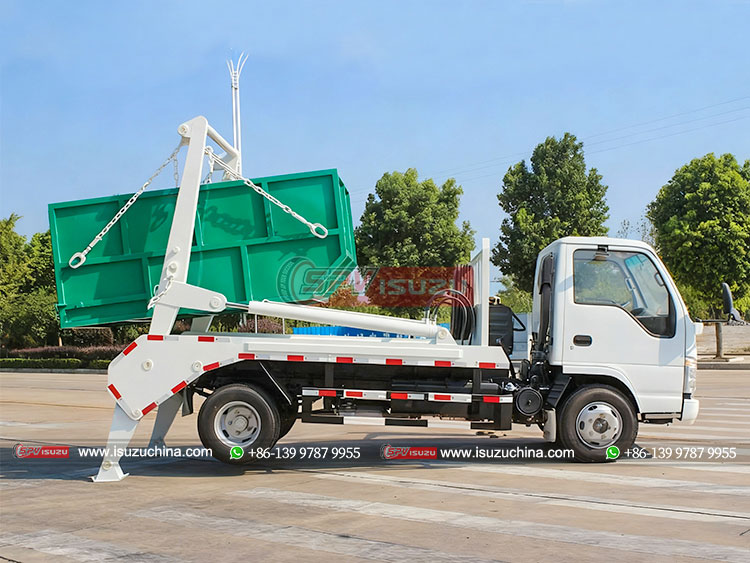

ISUZU 4X2 Light Swing Arm Trash Truck - Left Side
ISUZU 100P Garbage Truck With Hydraulic Lift - Rear Right Side
